Elexnova RF Wireless Transmission System
A high-reliability transmitter and receiver hardware platform engineered for wireless data telemetry in environments where physical cabling is impractical, costly, or hazardous.
Transmitter + Receiver
Dedicated module pairingExternal Tuned Antennas
Extended line-of-sight rangeQuad Status LEDs
Power, TX/RX & Data activityUART / Serial / MCU
Universal hardware pinoutsRobust Wireless Packet Modulation & Recovery
How data packets traverse from sensor microcontrollers through RF airwaves to target actuators.
1. Host Ingestion
Sensor data or command bytes are passed via UART/Serial interface to the RF transmitter module buffer.
2. RF Modulation
The internal modem packages data with checksums and modulates the signal onto the specified RF carrier frequency.
3. Antenna Propagation
External omnidirectional antennas radiate electromagnetic signals across industrial environments and structural obstacles.
4. Receiver Demodulation
High-sensitivity receiver verifies CRC integrity, illuminates activity LEDs, and delivers clear bytes to the controller.
Engineered for Industrial Telemetry Resilience
Field-tested RF modules designed for noise immunity, extended battery lifespans, and plug-and-play electronics integration.
Dedicated RF Modules
Paired transmitter and receiver units operating on interference-resistant bands with robust noise rejection filters.
External Antennas
High-efficiency whip or rubber-duck antennas maximize gain and penetrate concrete or metal structures effectively.
Ultra-Low Power Operation
Sleep-mode current consumption in microamps, ideal for solar-powered or remote battery-operated IoT sensor nodes.
Diagnostic LED Array
Visual status feedback for power on, RF carrier detect, data transmitting, and packet acknowledgment during installation.
Enclosed Industrial Casing
Rugged ABS enclosure with screw-mounting tabs protecting sensitive circuitry from dust, vibration, and mechanical impact.
Seamless Microcontroller Hookup
Compatible with Arduino, STM32, ESP32, PIC, Raspberry Pi, PLC serial ports, and industrial RS485 converter bridges.
Where Wireless Telemetry Solves Practical Problems
Eliminating expensive trenching and cable wear across manufacturing facilities, remote fields, and mobile machines.
Machine-to-Machine (M2M)
Interlock signaling between separate processing conveyors, overhead cranes, press machines, and emergency shutoff loops.
Sensor Data Acquisition
Wireless telemetry for tank liquid levels, environmental weather stations, strain gauges, and vibration sensors across sites.
Robotics & AGV Control
Remote command links for automated guided vehicles, mobile exploration robots, and industrial pan-tilt cameras.
Smart Utilities & Metering
Long-range data relay from remote water flow meters, electrical sub-panels, and solar inverters to central gateways.
Academic & Mechatronics Labs
A dependable wireless testbed for electronics engineering curricula, capstone projects, and wireless telemetry prototyping.
Customized Range & Protocols
Elexnova scopes power amplifier stages, directional Yagi antennas, custom CRC error handling, and industrial enclosures.
RF System Configuration & Integration

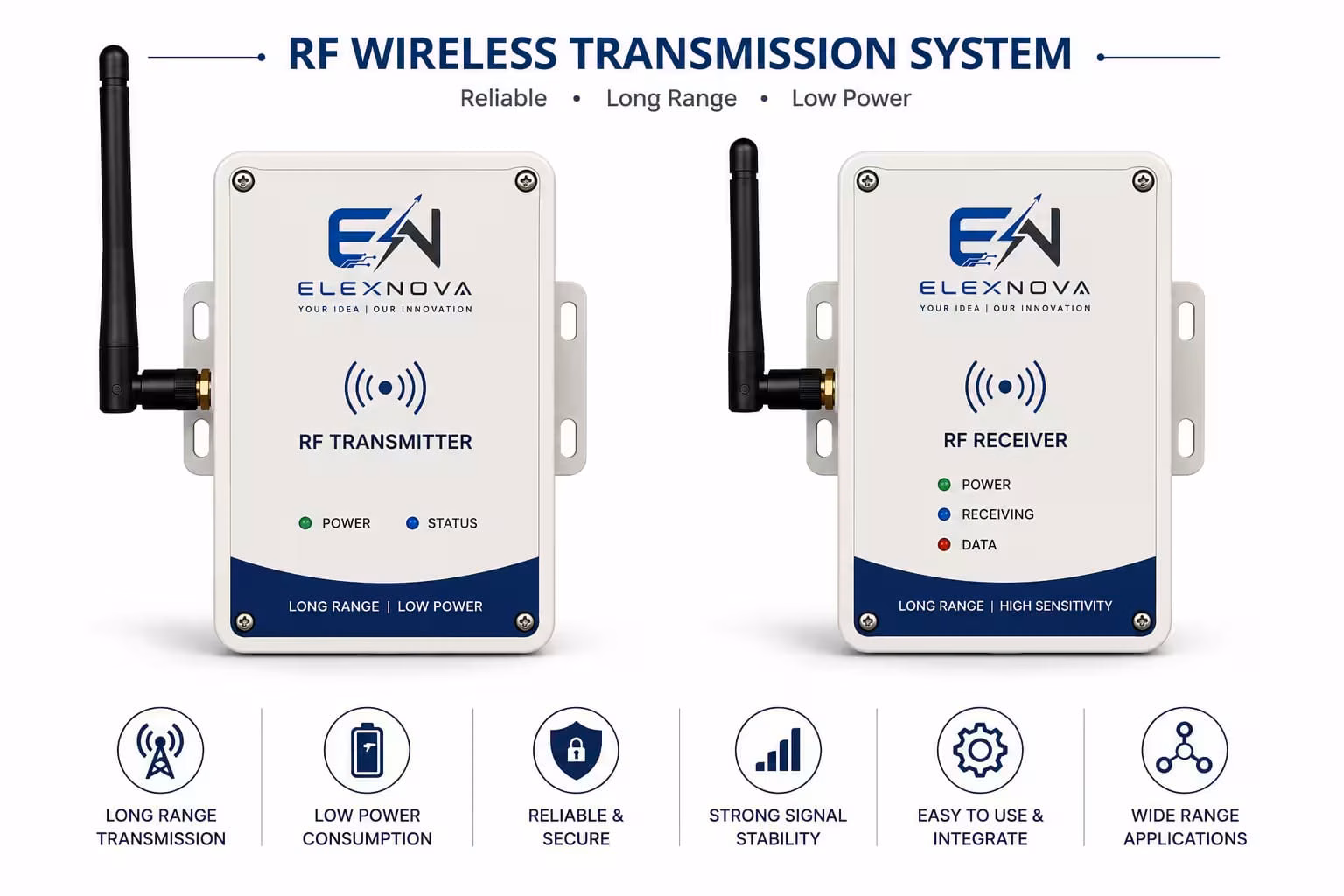

The commercial system pairs dedicated RF transmitter and receiver modules with external antennas for wireless data communication. Power, status or receiving, and data-activity indicators provide immediate feedback during installation and operation.
Elexnova can configure the communication interface around the required microcontroller, sensor, controller, power source, enclosure, and operating environment. Required range, data rate, antenna placement, protocol, and interference conditions should be assessed for the final deployment.
Custom Engineering Options
- ✓ Range tuning from 100m up to multi-kilometer line-of-sight
- ✓ Custom baud rates, parity, and hardware flow control
- ✓ Relay output boards for direct high-voltage solenoid switching
- ✓ IP65 weather-sealed enclosures for outdoor installations
- ✓ Firmware customization with packet encryption & device IDs
Upgrade Your Systems with Wireless Communication
Talk to Elexnova engineers to discuss communication range, antenna options, microcontroller interfaces, and environmental operating conditions.
